Open structure. Lower wind load.
High ventilation lets wind pass through the display structure, reducing wind load compared with conventional solid LED walls.
Open-grid cabinet
OutdoorRental
PRODUCT SERIES
Curtain
Air through. Light through. Sound through.
An open-structure outdoor LED curtain / mesh platform for stages, touring, façades and creative installations where airflow, transparency and reduced obstruction matter.
Cabinet options1000 × 500 / 500 × 500 mm
Weight≈ 8.5 / 5 kg
Pixel density32,768 pixels/m²
Curve adjustment−10° to +15°
Designed around the application.
Light through. Keep the architecture visible.
The open structure allows natural light through and reduces obstruction when installed on glass façades or transparent architectural surfaces.
Sound through. Keep the audio open.
Designed to minimize obstruction to sound transmission when loudspeakers are positioned behind or near the LED surface.
Creative outdoor configurations

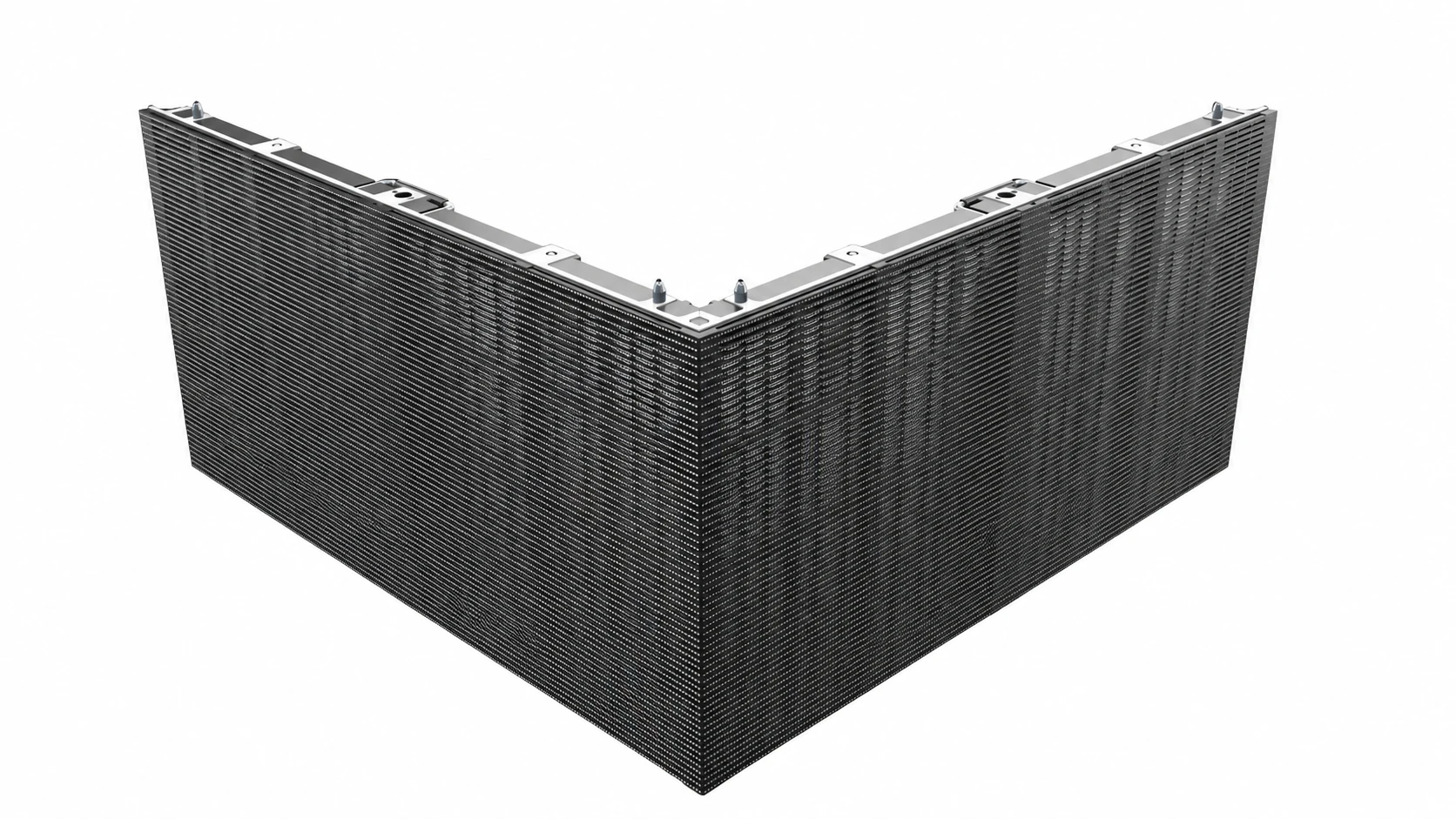

Curve adjustment and 45° edge / 90° assembly support stage and creative outdoor configurations.
Where it fits.
Confirm the model and installation conditions for each application.
Specifications
| Pixel pitch | P3.9–7.8 |
|---|---|
| Cabinet options | 1000 × 500 / 500 × 500 mm |
| Weight | ≈ 8.5 / 5 kg |
| Pixel density | 32,768 pixels/m² |
| Curve adjustment | −10° to +15° |
| Brightness | 4,000–5,000 nits |
Questions, answered.
Which application is this product designed for?
An open-structure outdoor LED curtain / mesh platform for stages, touring, façades and creative installations where airflow, transparency and reduced obstruction matter.
PDF brochure
Brochures are currently provided in English.
Curtain
English · 1855 KB
Features: Open structure. Lower wind load. · Light through. Keep the architecture visible.
Applications: Concerts & stages
Application story
Curtain
Switzerland · Outdoor stage
Curtain P3.9–7.8 in a Swiss outdoor stage installation. The open LED structure combines displayed visuals with lighting behind the screen, with flat and curved screen arrangements.
View details ↗Tell us what you are building.
Start with the application, screen size and installation conditions. Keep the details in one project brief.
