One ET platform
Multiple pixel pitches share the cabinet platform. With waterproof aviation connectors selected, the platform can convert between indoor and outdoor modules.

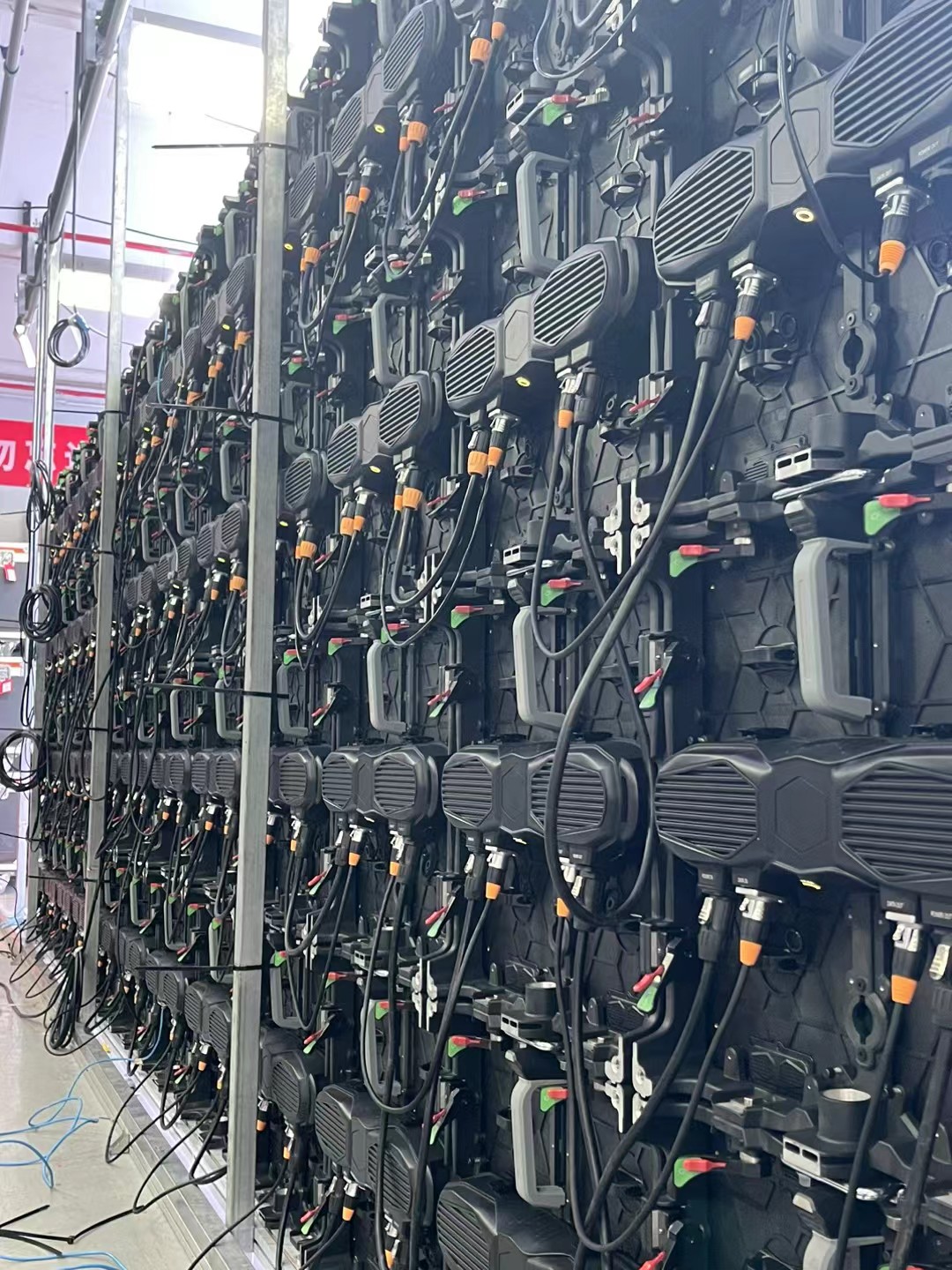

Rear cabinet view
IndoorOutdoorRentalFixed installation
PRODUCT SERIES
ET Series
One platform. Two cabinet formats. Interchangeable modules.
ET is the 500 × 500 mm core of a rental platform designed around transport, setup, service and future module upgrades.
Cabinet500 × 500 × 86 mm
Indoor pitchesP1.9 / P2.6 / P2.9 / P3.9
Outdoor pitchesP2.9 / P3.9 / P4.8
Refresh rate7,680 Hz
Designed around the application.
Tool-free modular central power box
The central power box can be removed and replaced completely by hand for faster field service.
ET front service requires approximately 100 mm rear clearance. Module removal uses a front-service tool; the central power box is tool-free.
Replace the module. Keep the calibration.
Point-by-point calibration and built-in flash memory help replacement modules restore stored calibration data.
Designed for single-person operation
A centered handle lets one hand position the cabinet while the other operates the installation hardware.
Rental configurations
Hanging, stacking, up to 10° concave and 7.5° convex, adjustable in 2.5° steps.
Faster large-screen deployment
The 1,000 mm-high cabinet reduces cabinet count and assembly operations on larger outdoor rental screens.
Full ET platform compatibility
Matching P3.9-O and P4.8-O modules interchange directly between ET and ET Plus; 500 × 500 and 500 × 1000 formats can be combined in the same screen.
One Dolly. Two cabinet formats.
The same dolly carries 24 ET cabinets or 12 ET Plus cabinets and supports open-air handling after wet outdoor events.
Purpose-built locating holes secure cabinets to the same open dolly for storage, transport and on-site deployment.
Optional customizable foldable wind truss
Available as an optional accessory and configurable to project preferences and structural requirements.
One rental fleet platform.
ET · 500 × 500 mm
Indoor and outdoor. A centered handle leaves one hand free to operate the cabinet.
ET Plus · 500 × 1000 mm
Outdoor only. Build larger surfaces with fewer cabinets; use ET for layout adjustments.
Dolly
24 ET or 12 ET Plus cabinets per Dolly. Mixed inventories use separate Dolly counts. Flight cases are optional.
Application stories
ET4.8-O
ET4.8-O · Outdoor event display
ET4.8-O displays visual content at an outdoor event, with the screen integrated into a truss structure.
View details ↗
ET Series
ET3.9-O · Taipei entrances
ET3.9-O entrance displays in Taipei, including a wall-mounted installation. The photographs show how the display follows the entrance structure.
View details ↗Where it fits.
Confirm the model and installation conditions for each application.
For fixed installations, ET supports fully front-serviceable wall-mounted applications.
Configure your ET inventory.
Specifications
| Cabinet | 500 × 500 × 86 mm |
|---|---|
| Indoor pitches | P1.9 / P2.6 / P2.9 / P3.9 |
| Outdoor pitches | P2.9 / P3.9 / P4.8 |
| Refresh rate | 7,680 Hz |
| Service | 100% front & rear access; front service requires approx. 10 cm rear clearance |
| Dolly | 24 cabinets / dolly |
| ET Plus cabinet | 500 × 1000 mm · Outdoor only · 14 kg |
| Dolly capacity | 24 ET / 12 ET Plus |
| Outdoor module conversion | Waterproof aviation connectors required |
Questions, answered.
Which application is this product designed for?
ET is the 500 × 500 mm core of a rental platform designed around transport, setup, service and future module upgrades.
Can indoor modules be changed to outdoor modules?
Yes, with the waterproof aviation connector configuration. Confirm the corresponding modules and installation layout.
PDF brochure
Brochures are currently provided in English.
ET Series
English · 4268 KB
Features: One ET platform · 24-cabinet Dolly
Applications: Concerts & stages · Outdoor DOOH integration
Tell us what you are building.
Start with the application, screen size and installation conditions. Keep the details in one project brief.
