4040 / 4080 profile integration
Built to integrate directly with exhibition profile systems, helping the LED surface become part of the booth structure.
Cabinet structure
IndoorRentalFixed installation
PRODUCT SERIES
FBslim
Make LED part of your exhibition structure.
FBslim integrates with 4040 / 4080 exhibition profile systems, bringing flat, 90-degree corner and double-sided displays into your booth design.
Cabinet500 × 500 × 40 mm
Pixel pitchesP1.95 / P2.6 / P2.9 / P3.9
Standard weight5.7 kg
GOB weightApprox. 6.0 kg, depending on configuration
4040 / 4080 profile integration

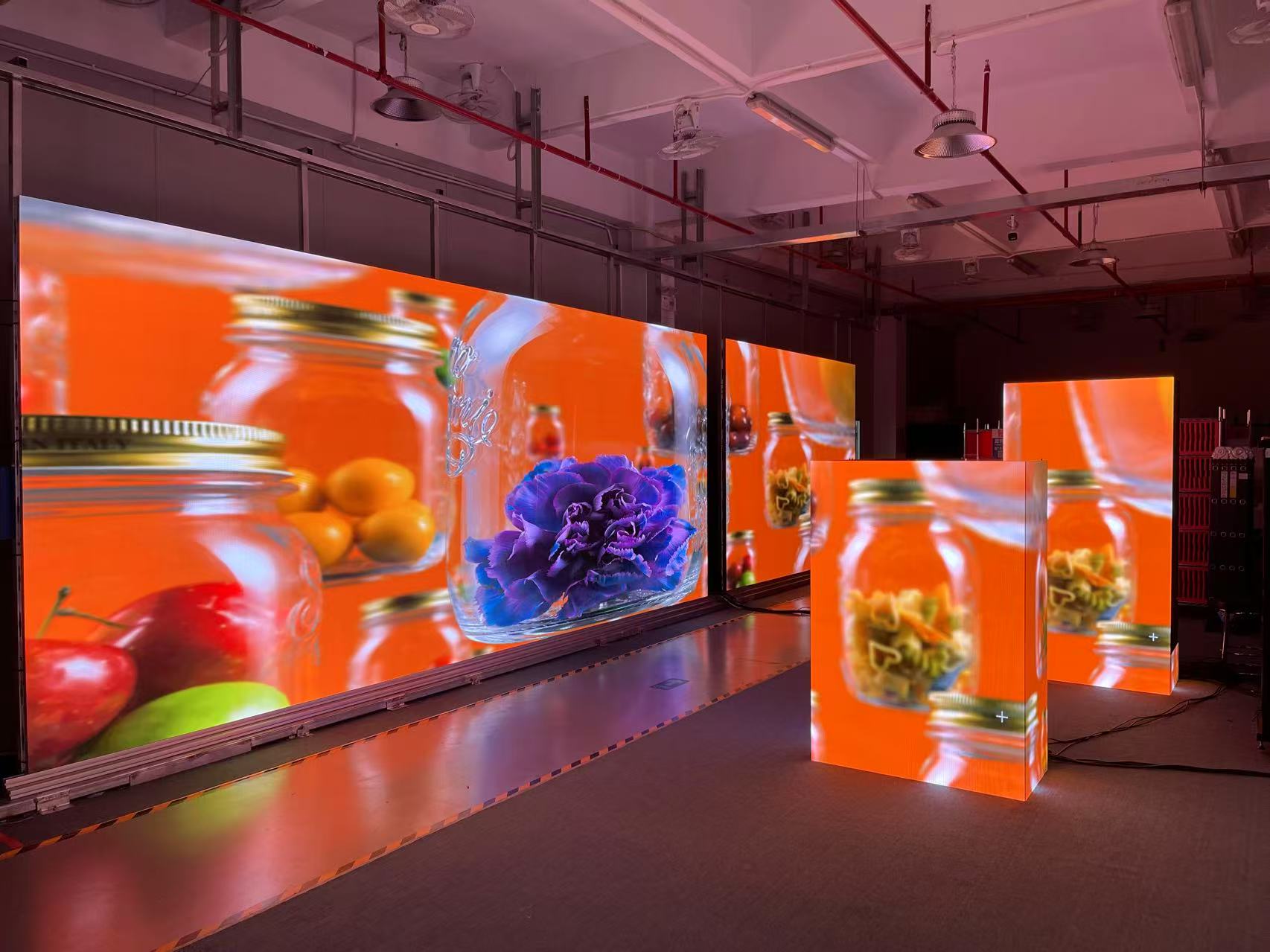

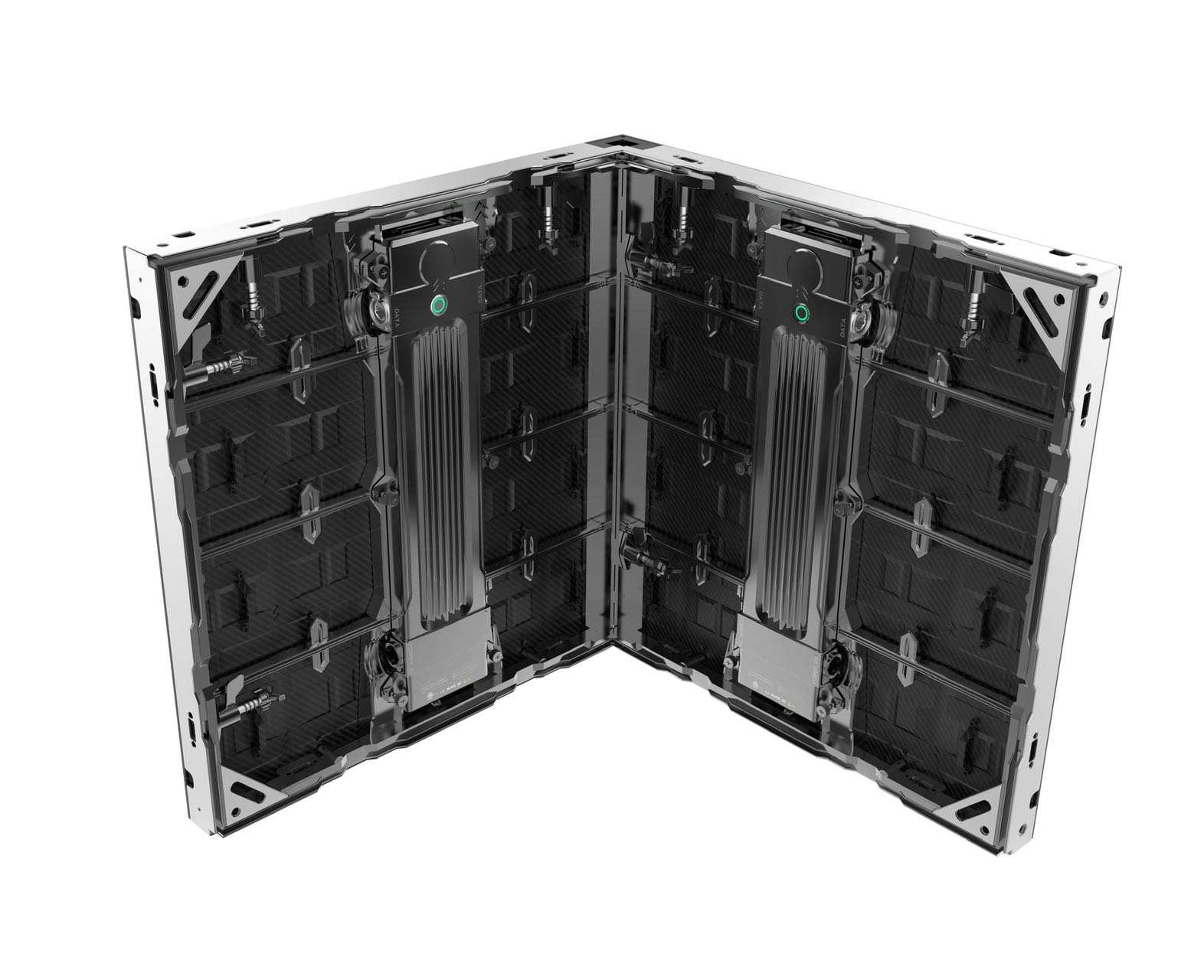

Seamless 90° corner installation
Create clean booth corners and integrated display surfaces without bulky external structures.
Double-sided, approx. 90 mm
All FBslim pixel pitches support a compact double-sided installation format.
Change the pitch. Keep the platform.
P1.95, P2.6, P2.9 and P3.9 share the cabinet platform and central power box; change the modules to change pixel pitch.
LED protection options
GOB is available across all pitches. IMD 2-in-1 is available for P1.95 and P2.6; the two are generally selected as alternatives rather than used together.
Service-ready architecture
Front and rear access, hot-swappable modules, reduced internal cabling and secure module positioning support rental and fixed-install service.
Rental protection
For P1.95 and P2.6 rental projects, select GOB or IMD 2-in-1. Protection choices do not change mechanical installation capability.
Application stories
FBslim
Switzerland · Exhibition structure
Display surfaces are integrated into an exhibition structure, creating a prominent visual corner.
View details ↗
FBslim
IBC 2024 · Amsterdam
A wide display brings moving content into the exhibition booth.
View details ↗
FBslim
Dubai · GISEC 2025
Display surfaces frame an exhibition entrance and support the stand’s visual identity.
View details ↗Where it fits.
Confirm the model and installation conditions for each application.
Compare configurations.
| Pitch | Brightness (nits) | Cabinet pixels | Rental protection |
|---|---|---|---|
| P1.95 | 600–1000 / 1000–1300 | 256 × 256 | GOB / IMD 2-in-1 |
| P2.6 | 800–1000 / 1300–2000 | 192 × 192 | GOB / IMD 2-in-1 |
| P2.9 | 800–1100 | 168 × 168 | Standard / GOB |
| P3.9 | 500–600 | 128 × 128 | Standard / GOB |
Standard: 5.7 kg. GOB: approximately 6.0 kg, depending on configuration. GOB and IMD are alternatives. Viewing distance is project dependent.
Specifications
| Cabinet | 500 × 500 × 40 mm |
|---|---|
| Pixel pitches | P1.95 / P2.6 / P2.9 / P3.9 |
| Standard weight | 5.7 kg |
| GOB weight | Approx. 6.0 kg, depending on configuration |
| Refresh rate | 7,680 Hz |
| Color processing | 15–22 bit, depending on configuration |
| Service | Front & rear access |
| Input voltage | AC100–240 V, 50–60 Hz |
| Power consumption | ≤580 W/m² max. / ≤210 W/m² average |
| IP rating (front / rear) | IP30 / IP30 |
| Front service clearance | No rear service space required |
Questions, answered.
Which application is this product designed for?
FBslim integrates with 4040 / 4080 exhibition profile systems, bringing flat, 90-degree corner and double-sided displays into your booth design.
What should you consider when selecting an LED display for a TV studio?
Consider colour temperature and lighting, high refresh rate, a matte surface, moiré at different camera positions and during movement, plus cooling and noise from power supplies and cooling equipment that could affect sound recording. Verify the setup with camera and audio tests. Also consider electromagnetic compatibility and interference immunity, and check picture and sound while the studio equipment operates together. In space-constrained studios, consider an ultra-slim design while allowing room for cooling, cabling and maintenance.
Read the TV studio selection guidePDF brochure
Brochures are currently provided in English.
FBslim
English · 6034 KB
Features: 4040 / 4080 profile integration · Seamless 90° corner installation
Applications: Exhibition booths · Concerts & stages · Shops & branded retail · Culture & art galleries · TV studios · Meeting rooms & halls
Tell us what you are building.
Start with the application, screen size and installation conditions. Keep the details in one project brief.
