Transparency by pitch
The P3.91, P4.81 and P6.25 versions list 80%, 90% and 92% transparency respectively.
HoloRent · two-cabinet assembly
IndoorRental
PRODUCT SERIES
HoloRent
Light through. An open stage.
Transparent LED for indoor rental, using a 1000 mm square cabinet and flat or gently curved arrangements.

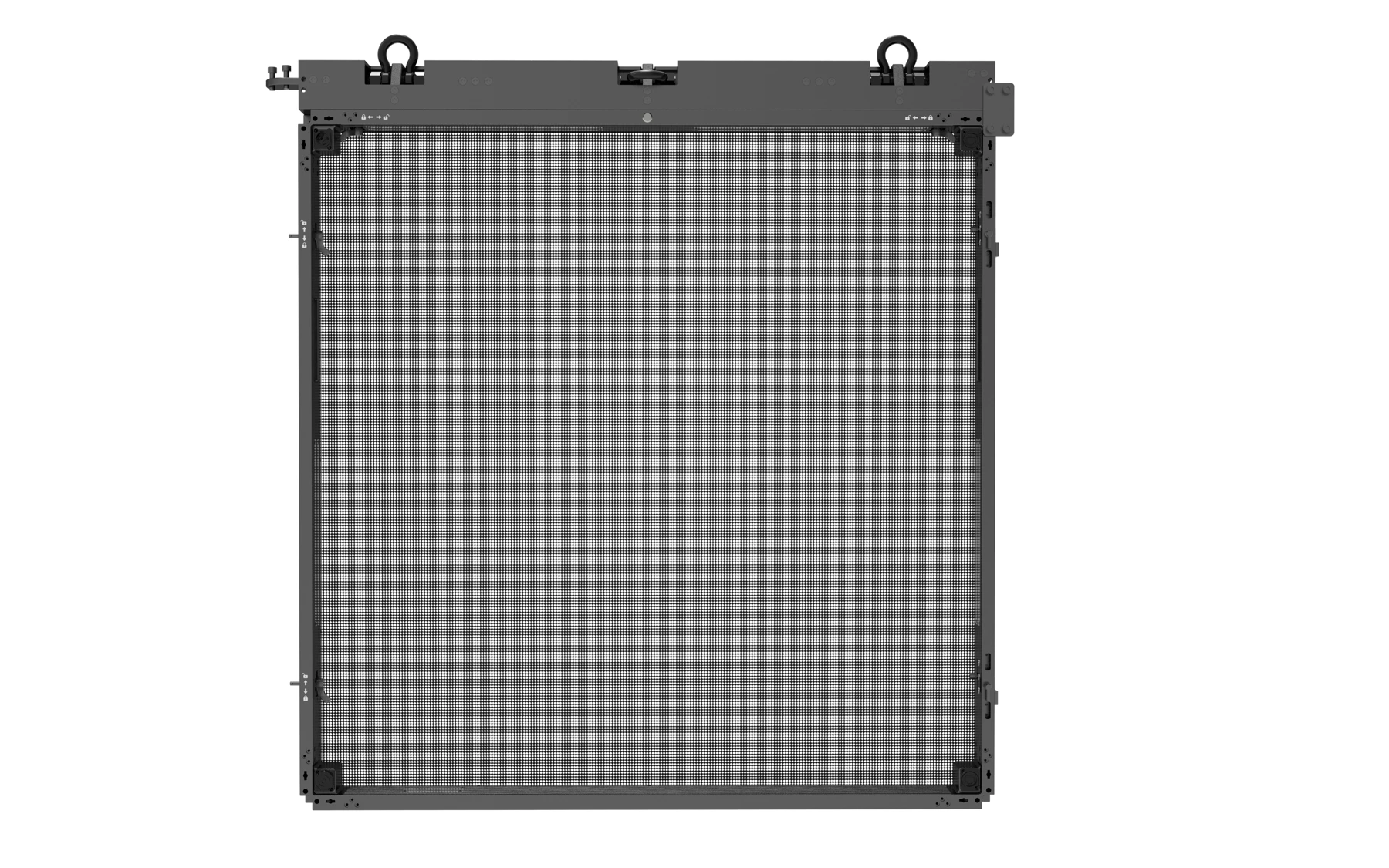

Cabinet1,000 × 1,000 × 71.8 mm
WeightApprox. 9.2 kg / cabinet
Pixel pitchesP3.91 / P4.81 / P6.25
Transparency by pitch80% / 90% / 92%
Designed around the application.
Indoor rental
Use the indoor rental platform with project-specific support and audio / lighting planning.
Stored calibration data
Point-by-point calibration and built-in flash memory support image consistency and maintenance.
Where it fits.
Confirm the model and installation conditions for each application.
Specifications
| Cabinet | 1,000 × 1,000 × 71.8 mm |
|---|---|
| Weight | Approx. 9.2 kg / cabinet |
| Pixel pitches | P3.91 / P4.81 / P6.25 |
| Transparency by pitch | 80% / 90% / 92% |
| Brightness | 2,000–3,000 nits |
Questions, answered.
Which application is this product designed for?
Transparent LED for indoor rental, using a 1000 mm square cabinet and flat or gently curved arrangements.
How do HoloRent, HoloFix Film and HoloFix Panel differ, and how are they installed?
Swipe horizontally to view the full comparison.
| Feature | HoloRent | HoloFix Film | HoloFix Panel |
|---|---|---|---|
| Primary use | Rental applications with repeated assembly and dismantling | Adhesive installation on existing architectural glass | Framed transparent displays for fixed installations |
| Structure and size | 1,000 × 1,000 mm rental cabinet | No cabinet frame | 1,000 × 1,000 mm frame |
| Installation | Hanging or stacking | Adhesive mounting on glass | Framed installation with hanging locks |

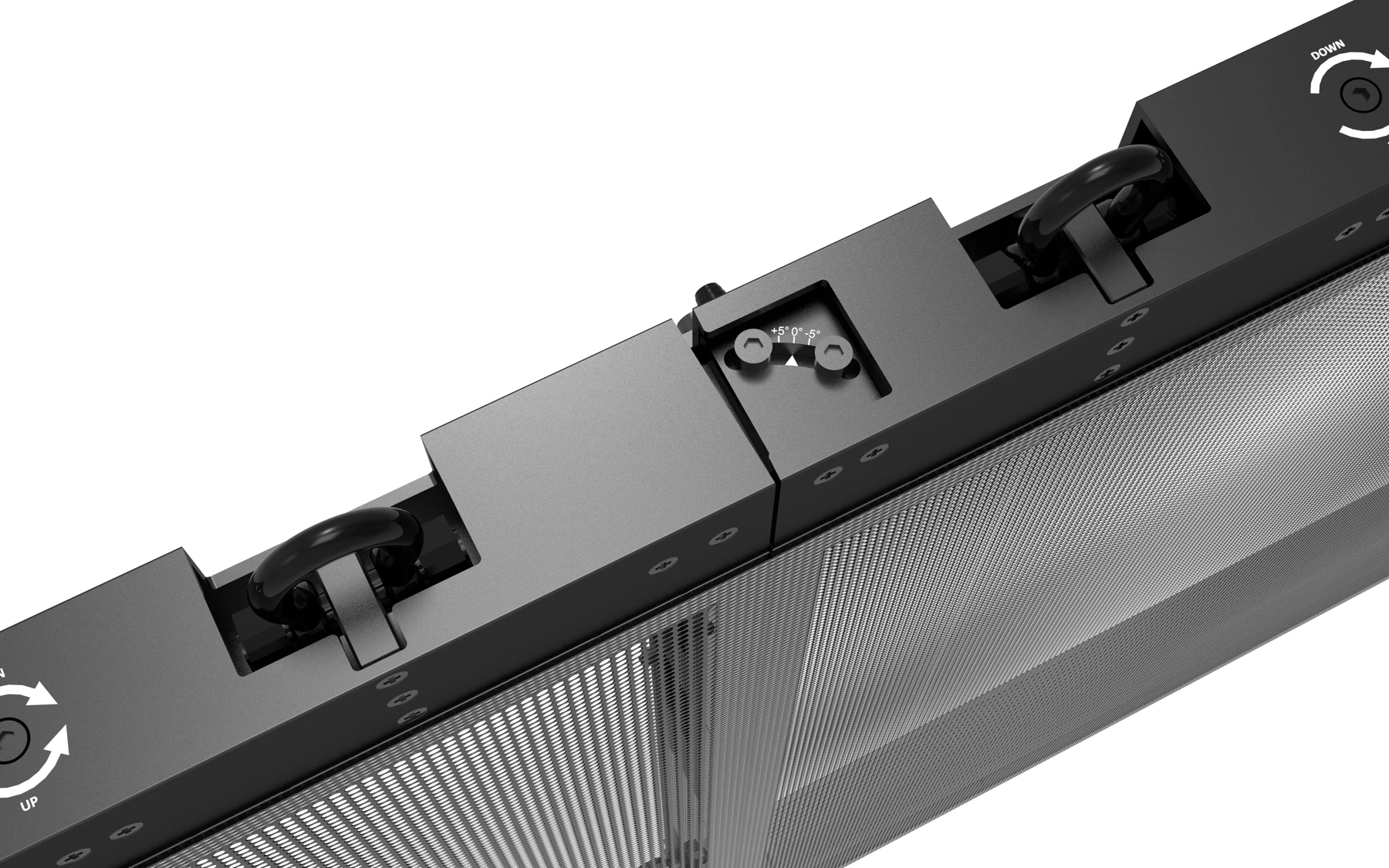

| Curved configurations | Equipped with angle-adjustment locks | No rental cabinet locks or cabinet angle-adjustment locks | No angle-adjustment locks |

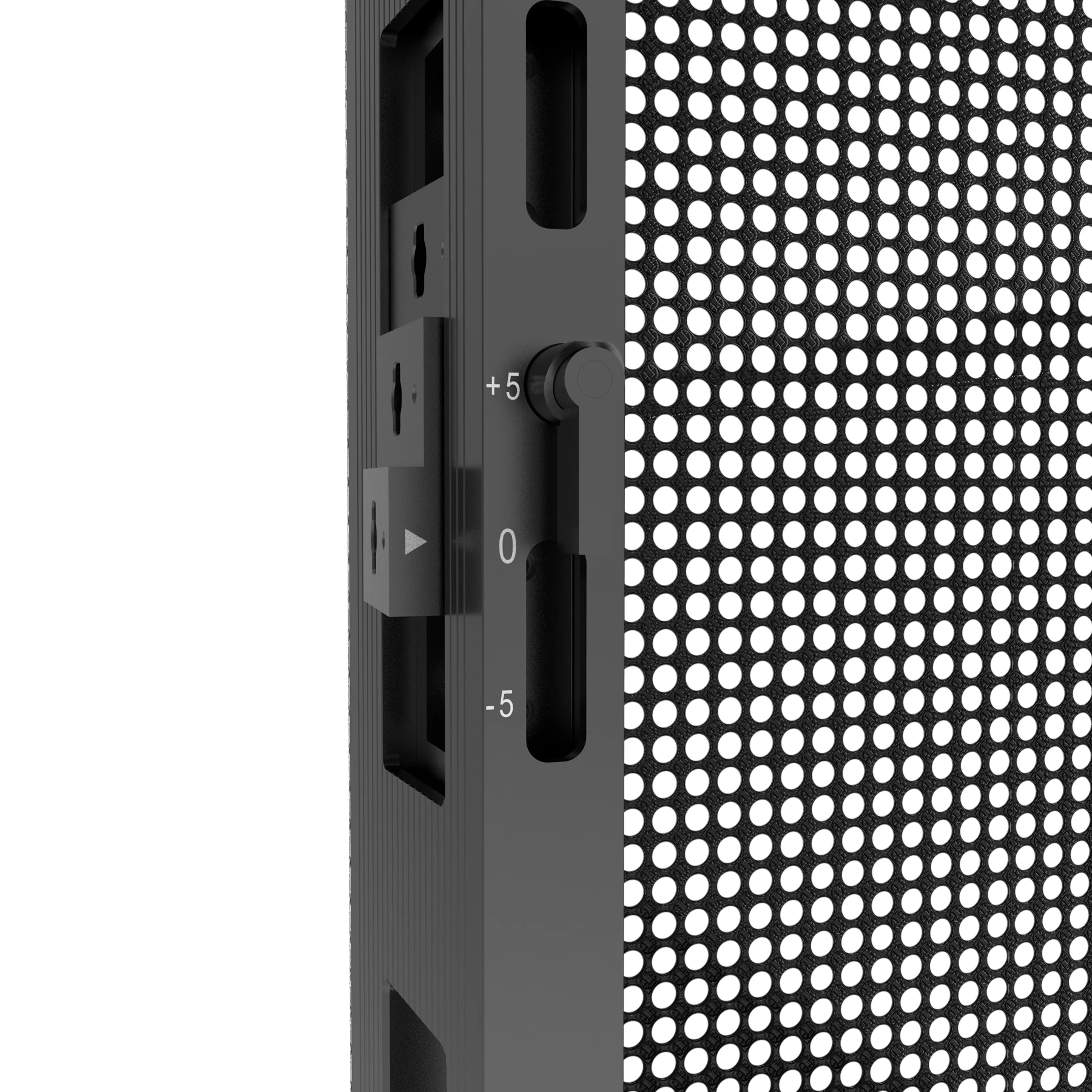

| Handling | Recesses in both sides form integrated, concealed handles | No cabinet handles | No concealed handles |
| Flatness adjustment | Steel mesh integrated into the frame; mesh tension can be adjusted to improve screen flatness | Conforms to the mounting glass | Steel mesh can be added, but the frame does not support tension-based flatness adjustment |
| LED mask | Full-area mask coverage improves overall contrast | No mask for glass-mounted installation | Optional mask |
| Power supply structure | Ultra-slim power supply and receiving card integrated within the frame | Conventional power supply with a taller, thicker power box | Conventional power supply in an external modular box that protrudes beyond the rear frame |
| Thickness | 71.8 mm; uniform overall cabinet depth | Non-uniform depth, with the power box forming the thickest part | 79 mm maximum overall depth; non-uniform depth, with the power box forming the thickest part |
| View from the side | No protruding power box, giving a more consistent overall appearance | Frameless display area; power box placement depends on the glass installation layout | By comparison, HoloRent provides more uniform transparency from the side, helping achieve a seamless stage presentation. |
| Choose it when | You need repeated assembly, hanging or stacking, and curved configurations | You want the display to integrate with existing glass and retain an open view | You need a frame and hanging connections without rental angle locks or concealed handles |
PDF brochure
Brochures are currently provided in English.
HoloRent
English · 1953 KB
Features: Transparency by pitch · Indoor rental
Applications: Concerts & stages · Culture & art galleries · Exhibition booths
