Player safety first
Soft protective masks are a standard part of the perimeter design. Confirm padding, support and venue requirements for the project.
Module access
OutdoorFixed installation
PRODUCT SERIES
Perimeter 1600
A wider pitch-side canvas.
A 1600 × 900 mm active display in a 1600 × 940 mm cabinet, with adjustable supports and front / rear access.
Active display1600 × 900 mm
Cabinet envelope1600 × 940 × 98 mm
Weight38 kg
Pitch optionsP5 / P6.25 / P8.33 / P10
Designed around the application.
Separate size definitions
Use active display size for the image and cabinet size for the installation envelope.

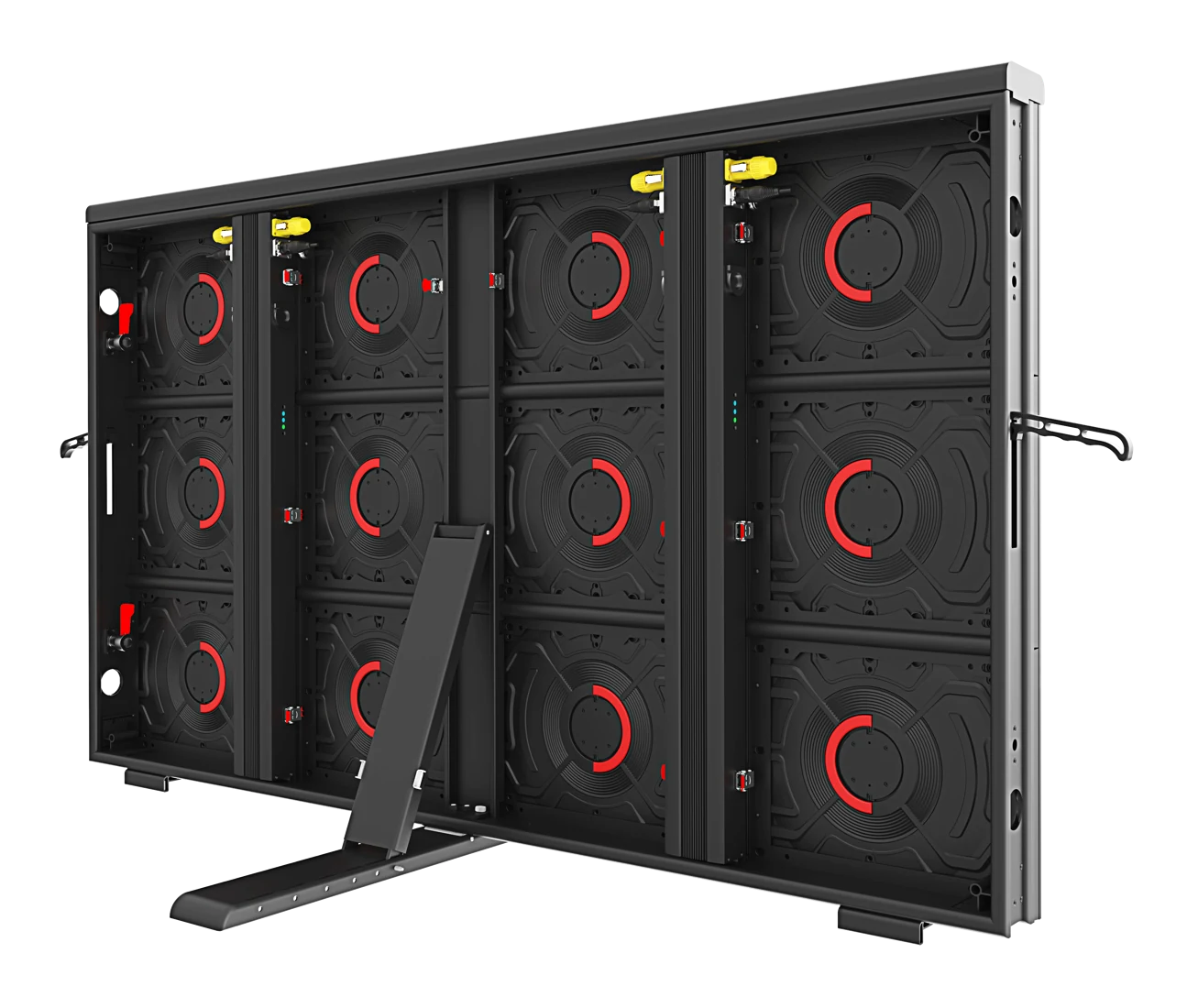

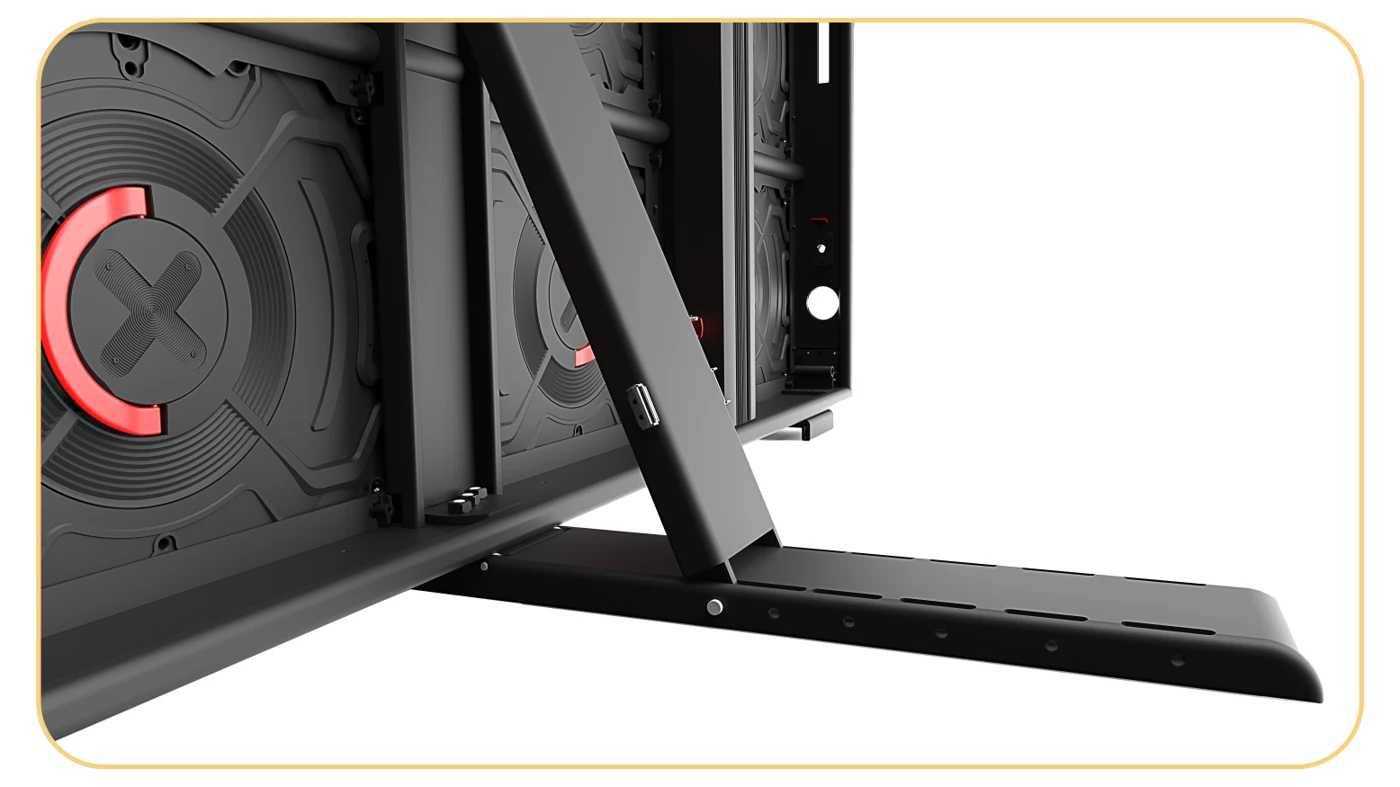

Adjustable support
The support positions listed are 90°, 95°, 100°, 105°, 110° and 115°.

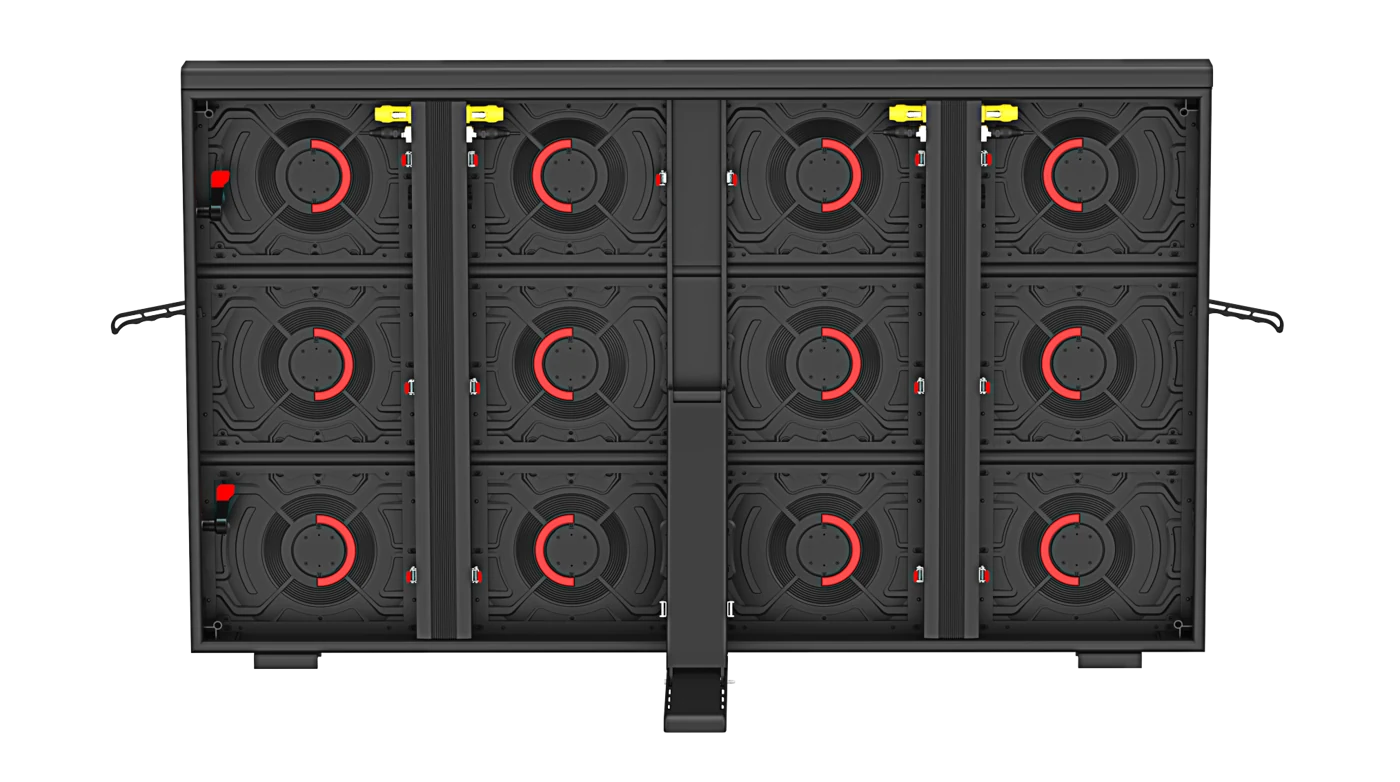

Service from both sides
Choose access around the installed perimeter and venue constraints.
Where it fits.
Confirm the model and installation conditions for each application.
Specifications
| Active display | 1600 × 900 mm |
|---|---|
| Cabinet envelope | 1600 × 940 × 98 mm |
| Weight | 38 kg |
| Pitch options | P5 / P6.25 / P8.33 / P10 |
| Protection | IP65 |
Refresh-rate wording differs within the catalogue; confirm the supplied controller and driving configuration.
Questions, answered.
Which application is this product designed for?
A 1600 × 900 mm active display in a 1600 × 940 mm cabinet, with adjustable supports and front / rear access.
PDF brochure
Brochures are currently provided in English.
Perimeter 1600
English · 1312 KB
Features: Player safety first · Separate size definitions
Applications: Sports venues
