Native 16:9 layout by design
A 2:1 cabinet layout creates a 16:9 display naturally: 2×1 = 1600×900 mm, 4×2 = 3200×1800 mm.
XL cabinet and access
OutdoorRentalFixed installation
PRODUCT SERIES
XL
XL means Extra Large. Fewer cabinets. Faster builds.
An 800 × 900 mm outdoor platform designed for native 16:9 layouts, faster builds and multiple applications including mobile displays, rental and fixed installation.
Cabinet800 × 900 × 72 mm
ModelsXL3 / XL6
Weight20 kg
Resolution208 × 234 / 128 × 144
Designed around the application.
Larger cabinet. Faster build.
The 800 × 900 mm format reduces cabinet count, cable connections and handling for time-critical outdoor builds.
Designed for single-person installation
The hand-sized ergonomic grip lets the operator hold the cabinet securely and lock it directly during installation.
Two pixel pitches. One XL platform.
XL3 and XL6 share the 800 × 900 mm cabinet and central power box; change the modules to change pixel pitch.
Front & rear service
Both service directions are supported; front service requires approximately 17 cm of rear clearance.
Application stories
XL
XL3 in Switzerland
A selection of XL3 installations across public viewing, live music and event spaces in Switzerland. These photographs show several applications, rather than a single project.
View details ↗
XL

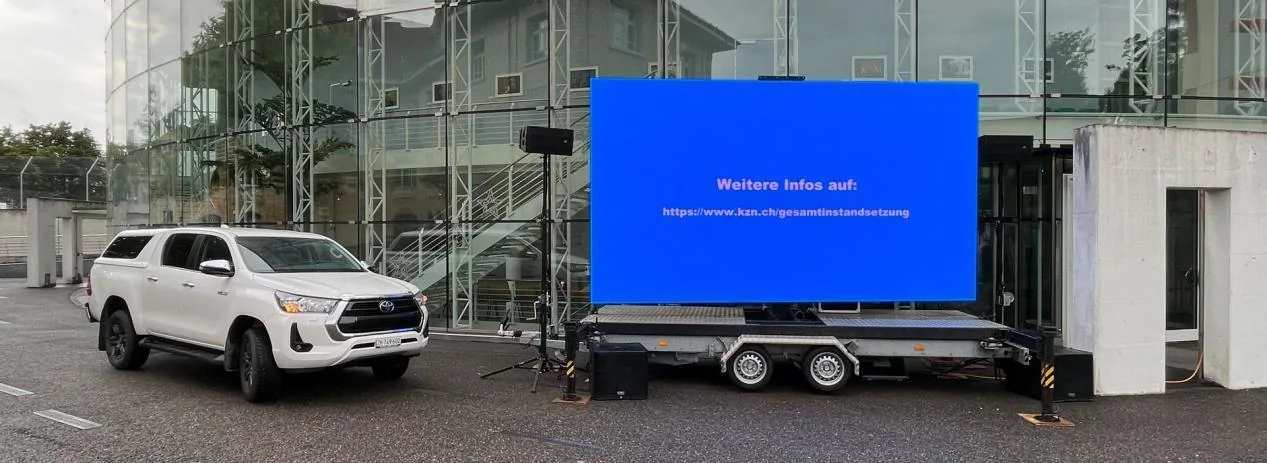

XL3 · Mobile trailer displays
XL3 trailer applications in Switzerland, with views of the setup, rear structure and roof detail.
View details ↗
XL
XL3 · Beach volleyball
An XL3 Black face display used as a scoreboard at a beach volleyball venue in Switzerland.
View details ↗
XL
Street Parade · XL3
Outdoor stage imagery from the XL3 application catalogue. Project dimensions and installation details are not specified here.
View details ↗Where it fits.
Confirm the model and installation conditions for each application.
Build in 16:9.
Specifications
| Cabinet | 800 × 900 × 72 mm |
|---|---|
| Models | XL3 / XL6 |
| Weight | 20 kg |
| Resolution | 208 × 234 / 128 × 144 |
| Max. / average power | 580 / 190 W per cabinet |
Questions, answered.
Which application is this product designed for?
An 800 × 900 mm outdoor platform designed for native 16:9 layouts, faster builds and multiple applications including mobile displays, rental and fixed installation.
Is one XL cabinet 16:9?
No. One cabinet is 800 × 900 mm. A 2:1 ratio of cabinet columns to rows creates a 16:9 screen.
PDF brochure
Brochures are currently provided in English.
XL
English · 1512 KB
Features: Native 16:9 layout by design · Larger cabinet. Faster build.
Applications: Concerts & stages · Outdoor DOOH integration · Sports venues · LED trailers
Tell us what you are building.
Start with the application, screen size and installation conditions. Keep the details in one project brief.
