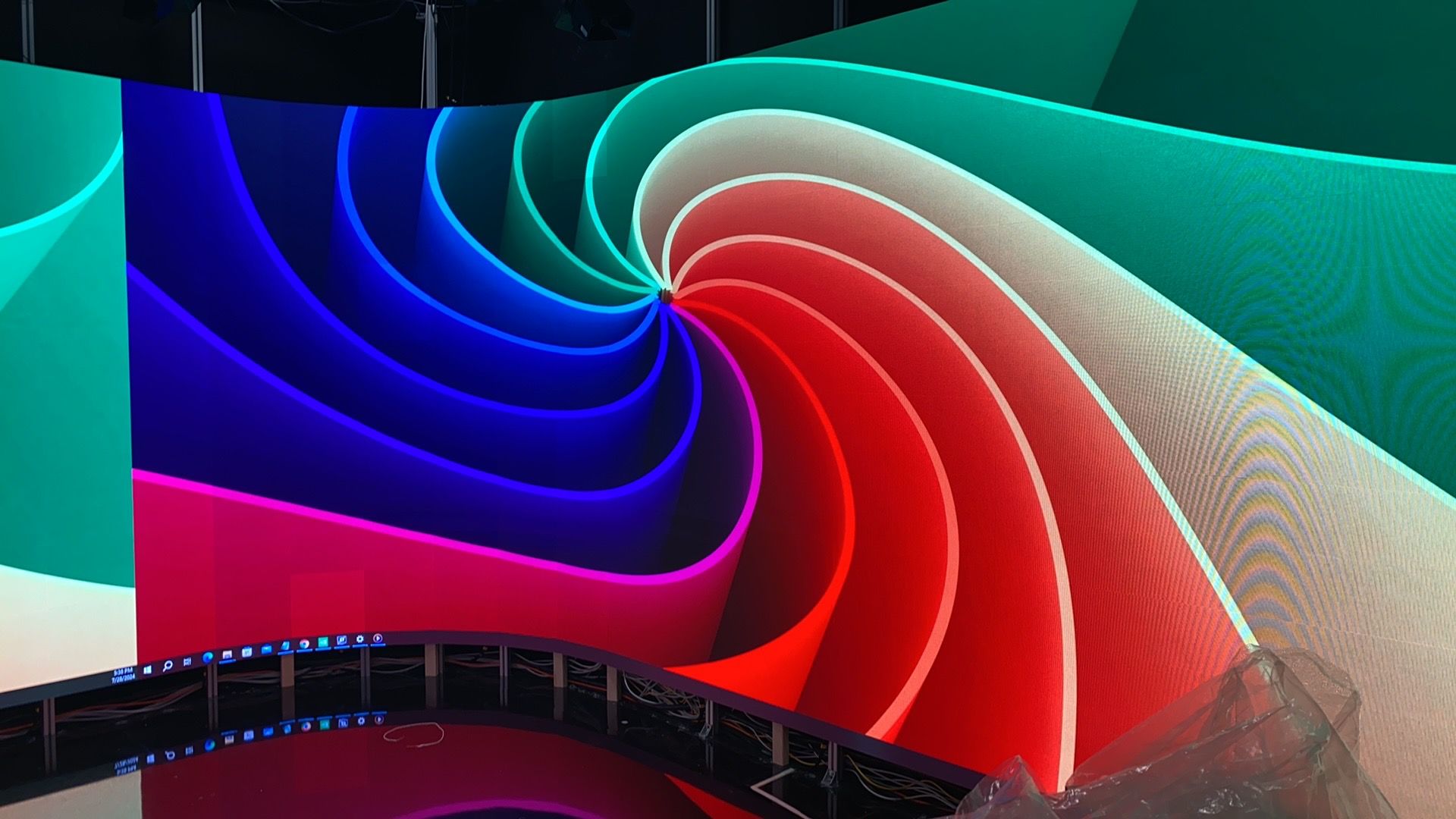

The SD1.5 MiniLED display system has been successfully installed in a European TV studio and is currently being utilized for broadcasting the Paris Olympics. This advanced display solution features a large curved screen composed of two distinct sections:

1. A standard rectangular section measuring 600mm × 337.5mm with integrated signal and power backup capabilities

2. A curved section measuring 300mm × 337.5mm, also equipped with SD1.5 dual backup functionality

The system incorporates precision-calibrated Nationstar MiniLED 4-in-1 panels with a 1.56mm pixel pitch. To optimize cable management and minimize wiring complexity, the installation utilizes a combination of CVT4K, CVT10, and fiber optic cables running from the H2 controllers to the CVT4K and CVT10 units.

The technical configuration includes:

• 2 × H2 controllers

• 2 × CVT4K units

• 2 × CVT10 units

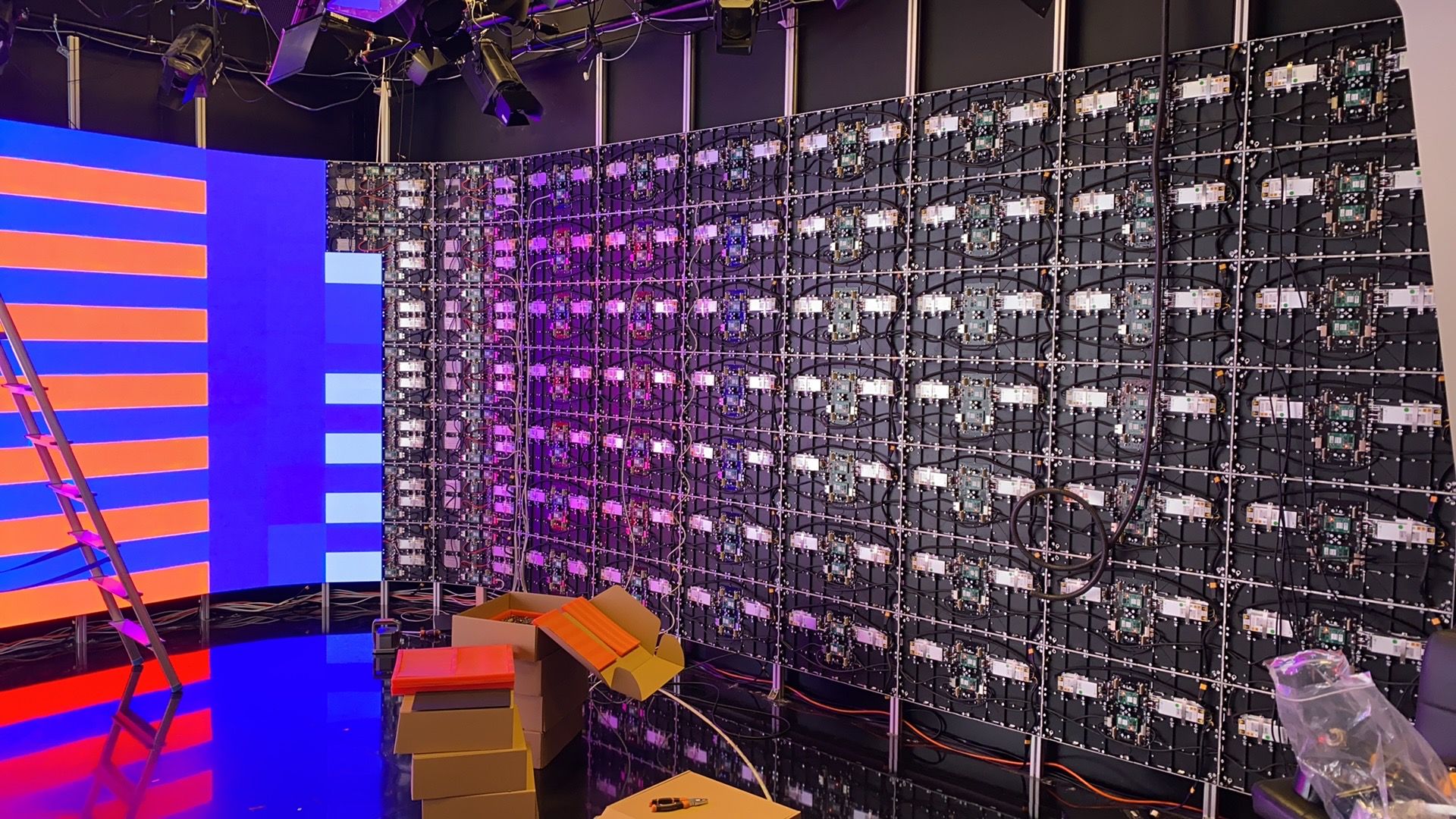

The complete display spans 30 square meters, comprising 189 individual panels supported by 378 receiver cards. This comprehensive broadcast-grade LED solution was designed and implemented by TuringLED, showcasing their expertise in large-scale display systems for professional broadcasting environments.
