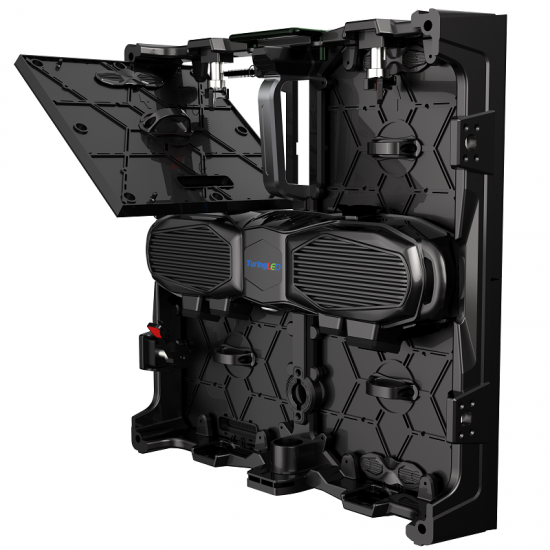

Single person operation.
Front and back access.
Central Control Box tool free to replace.
All modules with flash built-in for calibrated data.
7680 Hz
Module size 250mm x250mm
GOB
Brand:
TuringLED|
Item |
Parameter& Description |
|
Application |
Indoor |
|
Pixel pitch (MM) |
1.95 |
|
Panel Resolution (W*H) (Dots) |
256×256 |
|
Brightness (Nits) |
600～800 nits |
|
Pixel configuration |
SMD1212/SMD1212 GOB |
|
Scanning Mode |
1/32 |
|
Weight (Kgs/Panel) |
8.2 |
|
Pixel per Square Meter |
262,144 |
|
Refresh rate (Hz) |
7,680 |
|
Input power(Max/Avg.) (W/Panel) |
180/70 |
|
Panel size (W×H×D) (MM) |
500×500×86 |
|
Panel area （㎡） |
0.25 |
|
Panel material |
Aluminum |
|
Ingress protection (Front/Rear) |
IP30/IP30 |
|
Certification |
CE, RoHS, FCC |
|
Package |
Flight Case, Carton&Pallet, Plywood cases |
