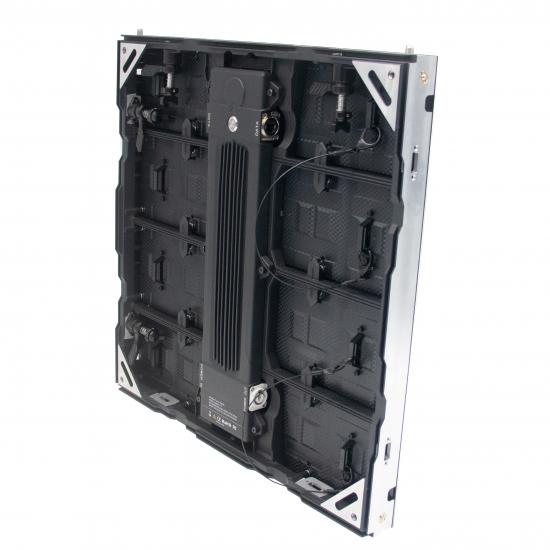

FBslim is designed based on Simple, Thin,Light and ALL-in-ONE concept
Brand:
TuringLED|
Item |
FBslim2.6 |
|
Pixel Composition |
SMD |
|
Pixel Pitch(mm) |
2.6 |
|
Module Resolution(W×H) |
192×48 |
|
Module Size(mm) |
500×125×3 |
|
Module Weight(kg) |
≈0.3 |
|
Module Qty/Cabinet(W×H) |
1×4 |
|
Cabinet Resolution(W×H) |
192×192 |
|
Cabinet Size(mm) |
500×500×40 |
|
Cabinet Area(㎡) |
0.25 |
|
Cabinet Weight(kg/cabinet) |
≈5.5 |
|
Cabinet Material |
Aluminium |
|
Cabinet Density（dot/m²） |
147456 |
|
IP Rating |
IP30 |
|
White Balance Brightness(nits) |
600 |
|
Color Processor(bit) |
15 |
|
Color Temperature(K) |
3000-10000 |
|
Visual Angle(H/V) |
160° |
|
Luminous point centre deviation |
＜3% |
|
Luminance uniformity |
≥97% |
|
Chromaticity uniformity |
Within ±0.003 （Cx, Cy） |
|
Contrast Ratio |
20000:1 |
|
The Max Power Consumption(W/㎡) |
720 |
|
Average Power Consumption(W/㎡) |
210 |
|
Input Voltage |
AC100~240V |
|
Frequency(Hz) |
50&60 |
|
IC Driving(s) |
1/24 |
|
Refreshing Ratio(Hz) |
3840/7680 |
|
Maintenance Method |
All Front and All Back |
|
Lifespan(hrs) |
100,000 |
|
Work Temperature/Humidity |
﹣20℃-+40℃/10%RH-90%RH |
|
Storage Temperature/Humidity |
﹣40℃-+60℃/10%RH-90%RH |
