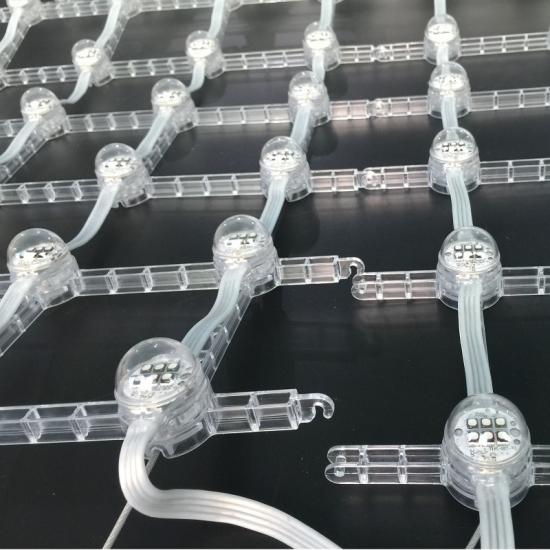

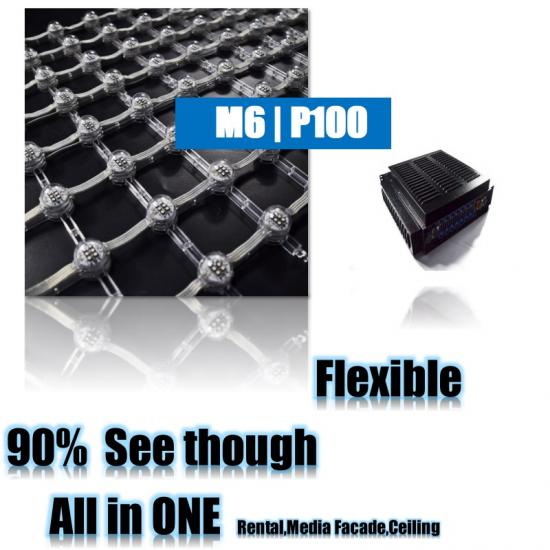

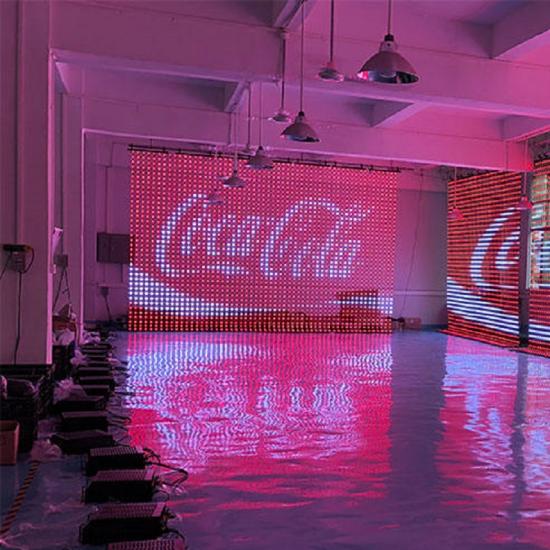

M6 LED flexible curtain is a type of flexible LED screen, with Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.
Brand:
TuringLED|
Parameters of M6 | P100mm |
|
|
Model |
M6 | P100 |
|
Pixel Pitch |
100mm |
|
Pixel Configuration |
6 x SMD3535 Gold Wire Nationstar |
|
Panel Size |
800x1280 mm |
|
Panel Resolution |
8x128 pixels |
|
Panel Weight |
2.6 kg/sq.m |
|
Brightness |
1350 nits |
|
IP Rating(Front/Rear) |
IP65 |
|
Refresh Rate |
1000 Hz |
|
Transparency Rate |
90% |
|
Scan Mode |
Static |
|
Max Power consumption |
120W/sq.m |
|
Color Processing |
12 bit |
|
Viewing Angle(H/V) |
140°/110° |
|
Operating Temperature |
-20~45°C |
|
Main Power Source |
AC 100~240V;50/60Hz |
|
Input Voltage |
24V DC |
|
Humidity |
10~90%RH |
|
Life Time |
100,000 Hours |
|
Certification |
CE, RoHS |
|
Note: The data may change accordingly. |
|
Previous :
M1If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New generation flexible LED curtain for stage rental and media facade, ultra-light, super transparent, quick installation, easy to form kinds of irregular shapes of led display for creative visual effect.
Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.

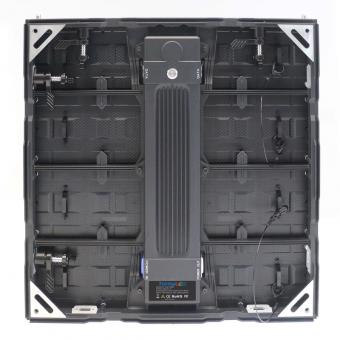

Single person operation. Front and back access. Central Control Box tool free to replace. All modules with flash built-in for calibrated data. 3840|7680 High refresh rate. Module size 250mm x250mm.

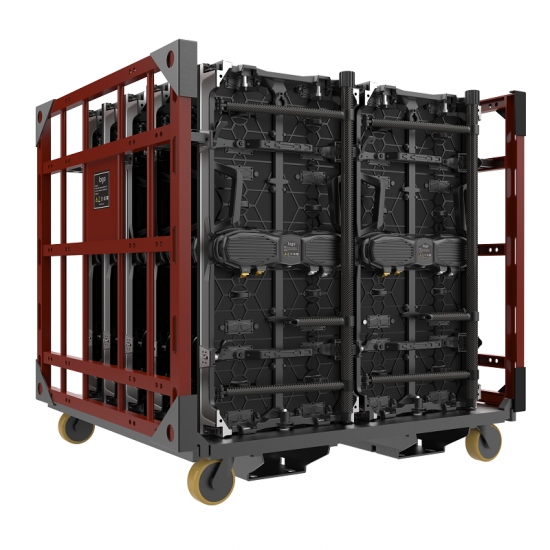

Black Face 5000 nits Outdoor Touring Rental Wind Truss Foldable 100% Front Access 100% back access Tool free to take out the Power Box Touring Cart
DOOH 3D Curve Billboard Energy Saving Perimeter

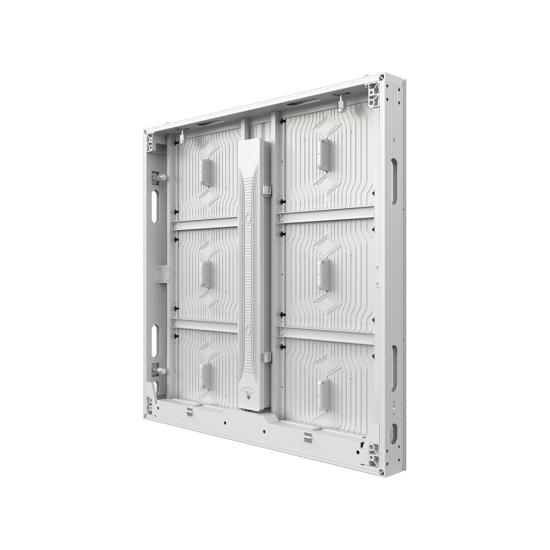

Billboard Corner + 3D + Curve Energy Saving Alu Module Back Shell
Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.

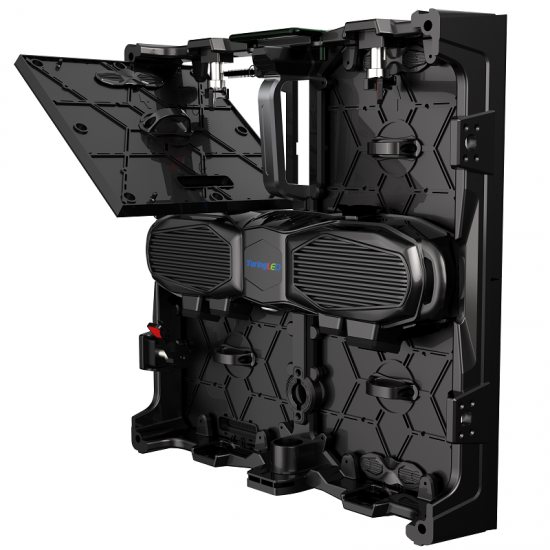

Single person operation. Front and back access. Central Control Box tool free to replace. All modules with flash built-in for calibrated data. 3840|7680 High refresh rate. Module size 250mm x500mm.
