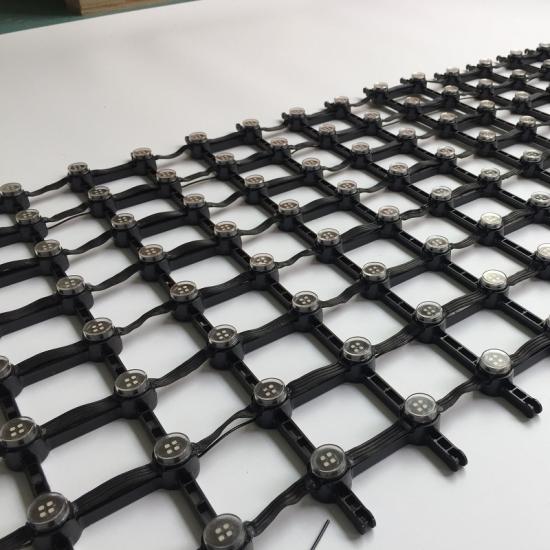

Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.
Brand:
TuringLED|
Parameters of SM4 | P56.25mm |
|
|
Model |
SM4 | P56.25 |
|
Pixel Pitch |
56.25 mm |
|
Pixel Configuration |
4 x SMD2727 Gold Wire Nationstar |
|
Panel Size |
450x7200 mm |
|
Panel Resolution |
8x128 pixels |
|
Panel Weight |
4.1 kg/sq.m |
|
Brightness |
2800 nits |
|
IP Rating(Front/Rear) |
IP65 |
|
Refresh Rate |
1000 Hz |
|
Transparency Rate |
70% |
|
Scan Mode |
Static |
|
Max Power consumption |
370W/sq.m |
|
Color Processing |
12 bit |
|
Viewing Angle(H/V) |
140°/110° |
|
Operating Temperature |
-20~45°C |
|
Main Power Source |
AC 100~240V;50/60Hz |
|
Input Voltage |
15V DC |
|
Humidity |
10~90%RH |
|
Life Time |
100,000 Hours |
|
Certification |
CE, RoHS |
|
Note: The data may change accordingly. |
|
next :
M6If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
New generation flexible LED curtain for stage rental and media facade, ultra-light, super transparent, quick installation, easy to form kinds of irregular shapes of led display for creative visual effect.
M6 LED flexible curtain is a type of flexible LED screen, with Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.
New generation flexible LED curtain for stage rental and media facade, ultra-light, super transparent, quick installation, easy to form kinds of irregular shapes of led display for creative visual effect.
Chip on board Flip Chip

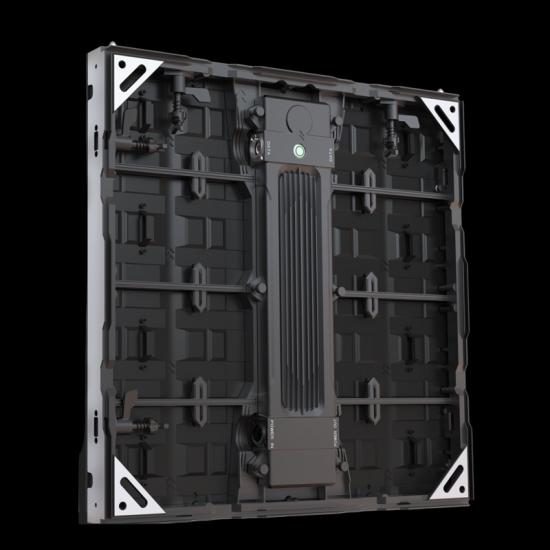

FBslim is designed based on Simple, Thin,Light and ALL-in-ONE concept 100% Front Access & Back Access Ultra Thin 4cm Panel Thickness Ultra Light 5.7kg Per Panel 9cm Double Sides DIY With Standard Alu Profile 4040,4080,4090 Etc 90 Degree Corner Screen 【Customized】
